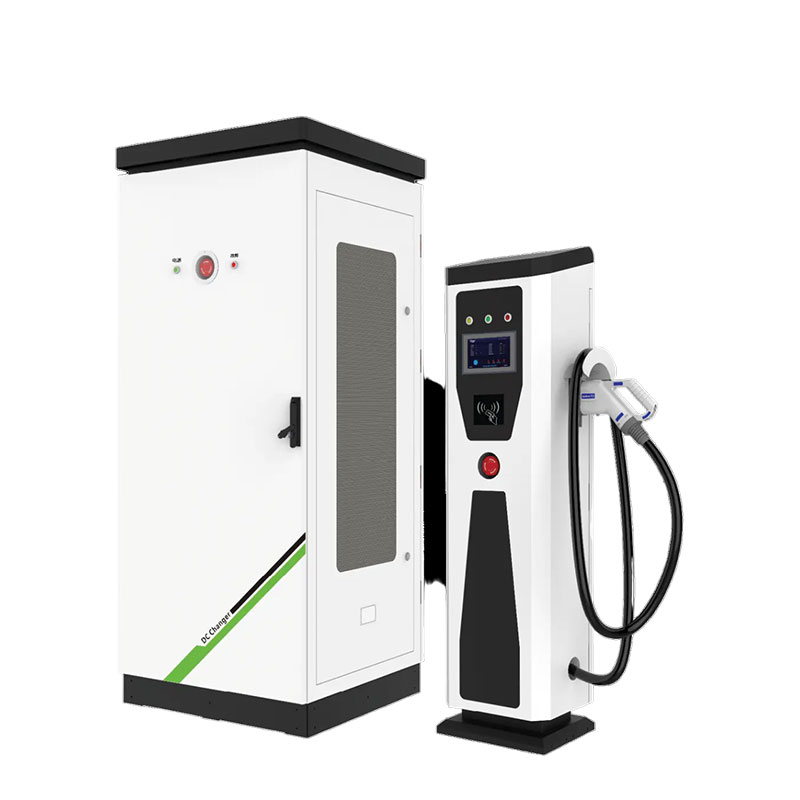

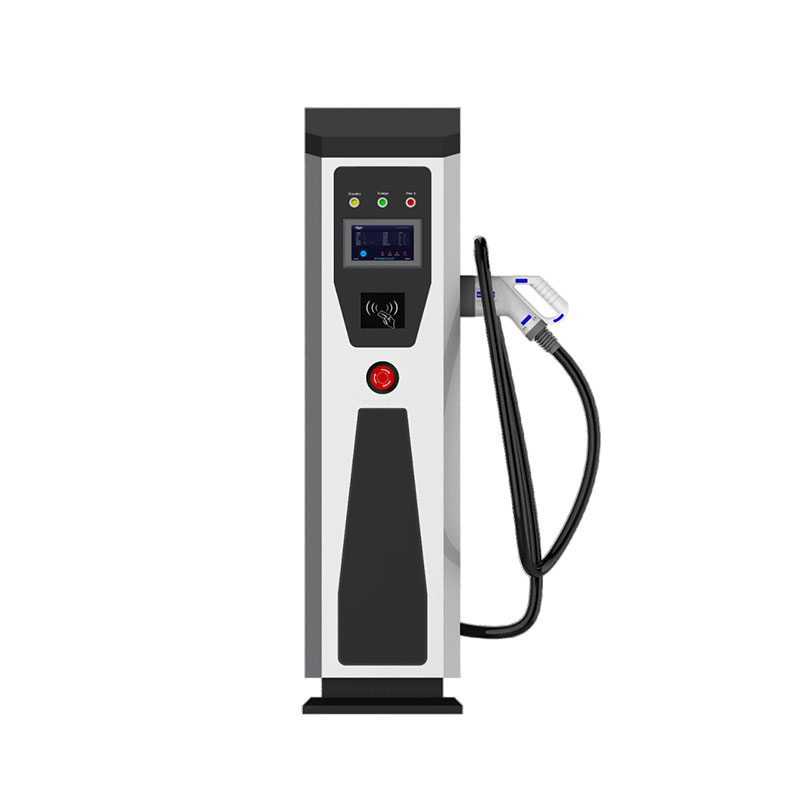

300kW Split Type Fan Cooling

★ ★ ★ ★ ★


Protection level: IP55/IP54

Display: 7 inch touch screen

Charging interface: DIN70121, ISO15118

Operating Temperature (°C): -30 ~ +50, power derating from 50 and above

High-voltage EV chargers provide high-power, high-efficiency, and safe fast charging solutions to meet the charging needs of electric vehicles in different scenarios, meet the fast charging of urban electric buses, and support urban bus operations.

High voltage electric vehicle charger design concept


1. High power output: The design goal of high-voltage EV chargers is to provide extremely high charging power to achieve fast charging and shorten charging time.

2. Charging efficiency: The design focuses on high efficiency to reduce energy waste, reduce charging costs, and reduce the burden of charging stations on the power grid.

3. Multiple charging interfaces: High-voltage chargers usually support multiple charging interfaces to adapt to different electric vehicle models, such as CHAdeMO, CCS, Type 2, etc.

4. Safety: Chargers should have advanced safety features, such as overcurrent protection, overheating protection, short circuit protection, etc., to ensure the safety of users and vehicles.

5. Communication and intelligent functions: Chargers are usually equipped with communication modules to realize intelligent functions such as user identification, remote monitoring, and metering of electric energy usage, and can also coordinate the charging process to adapt to the grid load.

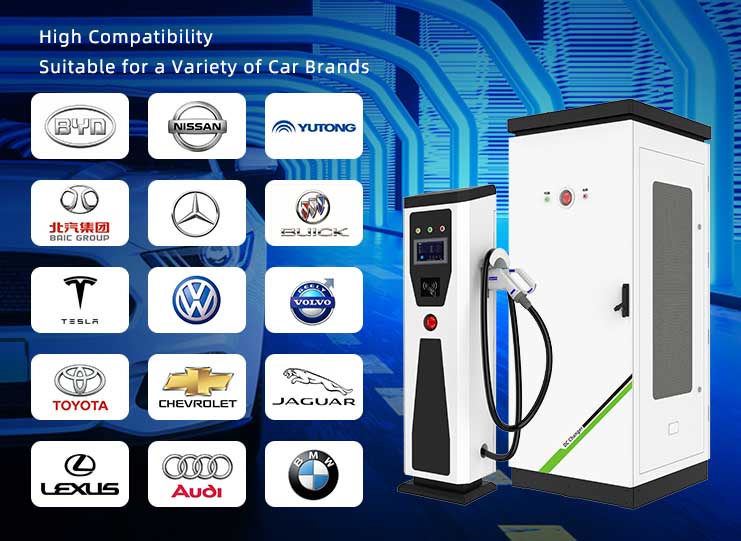

Which models are suitable for the 300kw high-voltage charger?


High voltage charger for all models

1. High-end electric vehicles (BEV and PHEV): Provide high-power charging, suitable for high-end electric vehicles to accelerate charging speed.

2. Electric buses: High-voltage chargers are usually located at key locations at bus stops to provide fast charging services so that electric buses can replenish their cruising range faster.

3. Public charging stations: High-voltage chargers are often used in public charging stations to meet the charging needs of a variety of electric vehicles.

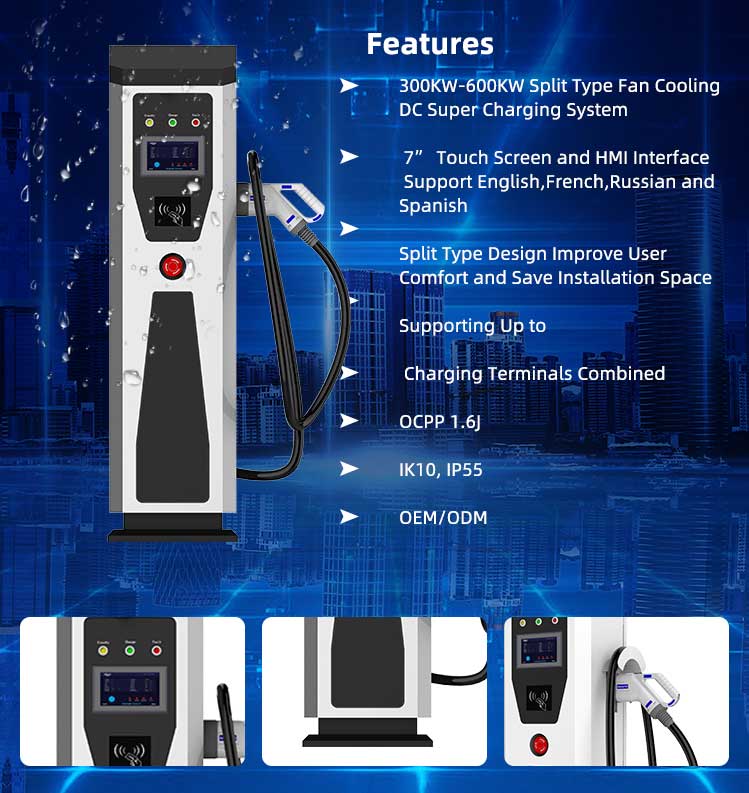

High voltage fast electric vehicle charger features


▶ An ideal fast charging solution for EV with 150~1000V battery

▶ Modular design for easy installation and maintenance

▶ 7” touch screen and friendly HMI interface could support English, French, Russian and Spanish

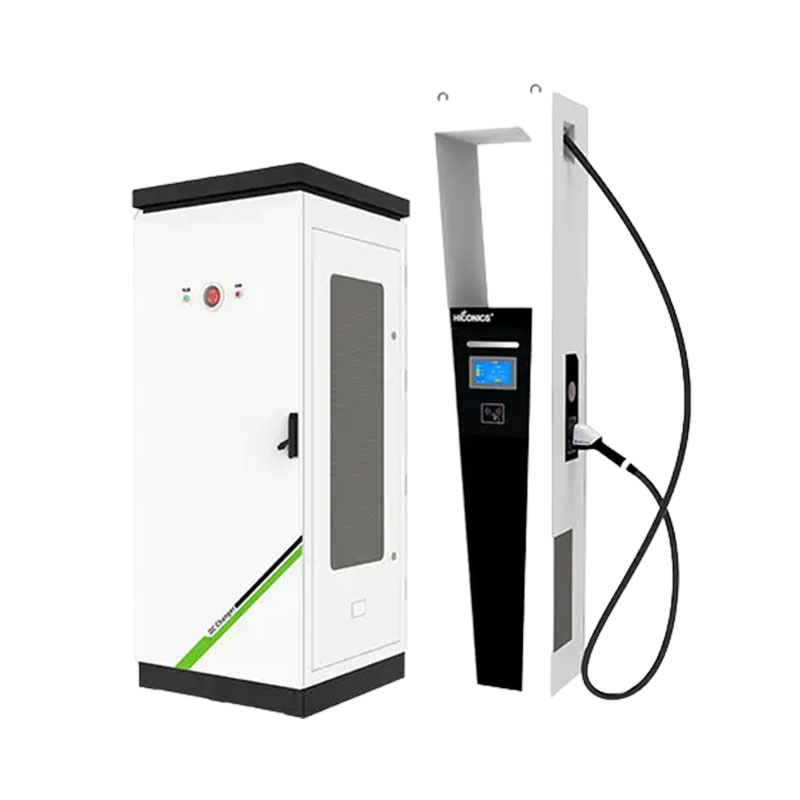

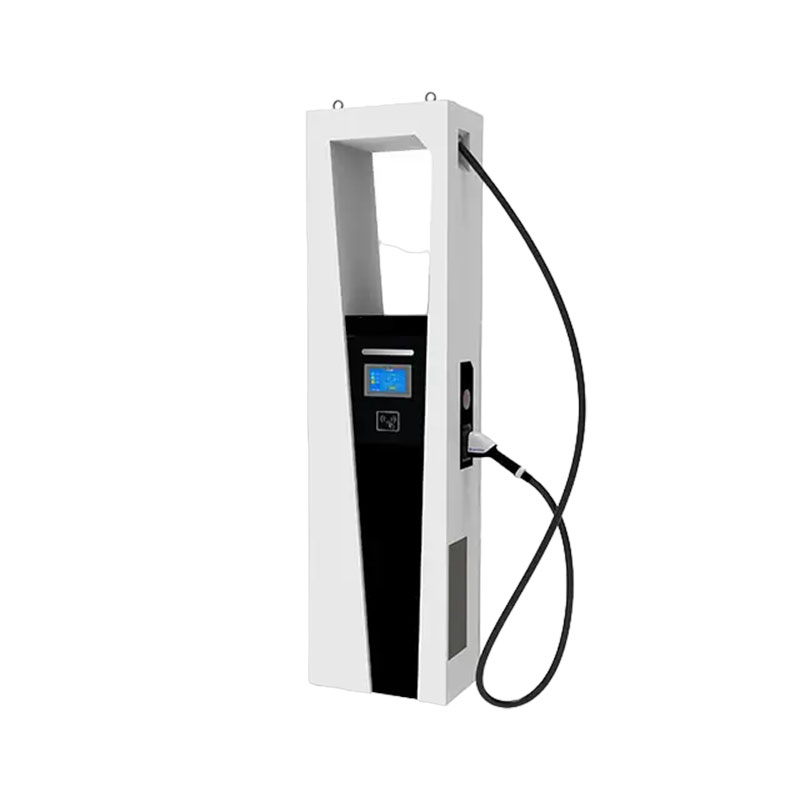

▶ Split type design improve user comfort

▶OCPP1.6 JSON

▶ Could support up to 5 charging terminals combined by different charging standards

▶ IK10, IP55

▶Customization available

High voltage fast charger features


High voltage charger international standard


1. IEC 61851: As an international standard for charging equipment, IEC 61851 ensures the interoperability and safety of chargers.

2. Charging interface standards: High-voltage chargers usually need to comply with charging interface standards in different countries and regions, such as CHAdeMO, CCS, Type 2, etc.

3. Safety standards: High-voltage chargers need to comply with international electrical safety standards to ensure user safety. This includes features such as over-current protection, over-temperature protection, short-circuit protection, and more.

CATEGORY SW SERIES
Model Name SW-C300-1000-E1 SW-D200-1000-E1
AC Input Input Rating 400VAC ± 15%
AC Input Connection 3P + N + PE
Max. Input Current (A) 550
Frequency (Hz) 45~65
Power Factor >0.99 @ 50% or higher load
Efficiency (%) 94
DC Output Output Voltage Range 150 ~1000VDC
Max. Output Current 200A
Output Power Range(kW) 300kW
Voltage Accuracy (%) ± 0.5
Current Accuracy (%) ± 1
User Interface
& Control
Display 7 inch touch screen
Push Buttons Emergency Stop
User Authentication RFID system ISO / IEC14443A/B
Display Information Charging process and status / Alarm and warning messages
Communication External Ethernet/4G/3G
Internal CANbus / RS485
Environmental Operating Temperature (°C) -30 ~ +50, power derating from 50 and above
Humidity (%) 5 ~ 95 RH, non-condensing
Altitude (m) ≤2500
IP Level IP54 IP55
Cooling method Fan cooling
Mechanical Dimension(WxDxH mm) 820*820*1980 300*396*1505
Weight(kg) ≤600 ≤78
Cable Length(m) 5 (ccs1, ccs2, CHAdeMO)
Protection Input Protection OVP, OCP, OTP, OPP, UVP, Residual current detection,
Surge protection, Cabinet-open detection (real door)
Output Protection SCP, OVP, OCP, OTP, UVP, Residual current detection
Regulation Certificate CE, TR25
Safety IEC 61851-1:2017, IEC 61851-23,IEC 61851-24,
IEC 61851-21-2
Charging Interface DIN70121, ISO15118
