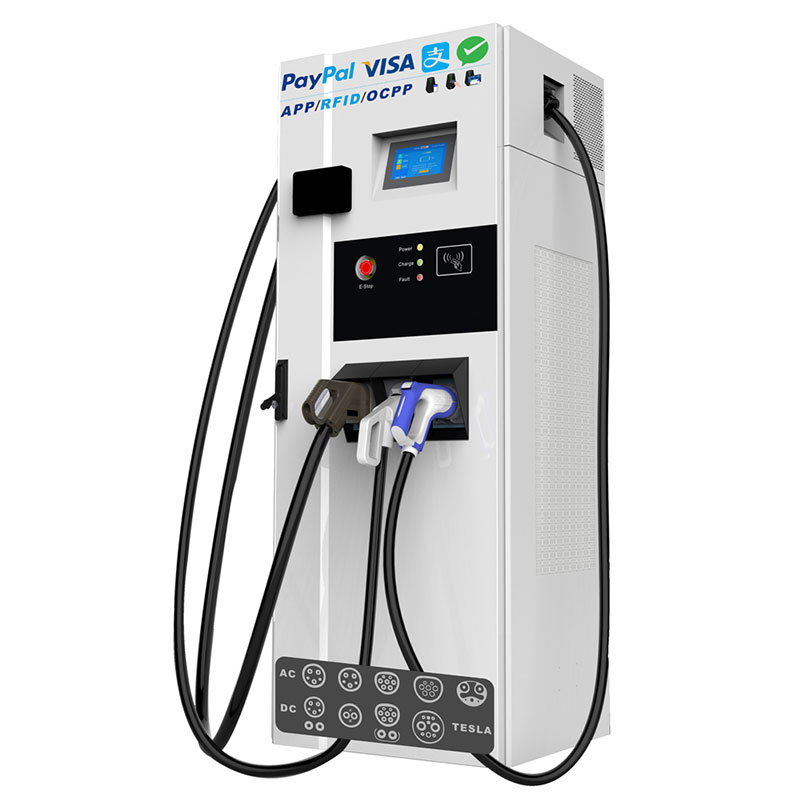

60kW/120kW/180kW Multi Standard Fast Charger

★ ★ ★ ★ ★


Protection level: IP55

Input voltage: 400

Charging interface: CHAdeMO 1.0, ISO15118, DIN 70121

Operating Temperature (°C): -30 ~ +50, power derating from 50 and above

The design concept of floor-standing EV chargers is to provide convenient, efficient, and reliable public charging station solutions to meet the charging needs of different electric vehicle models in public charging places.

Floor-standing charger design concept


1. Discoverability: Floor-standing chargers are usually set up in public places, and the design focuses on improving the visibility of the charging station so that users can easily find the charging station on the map.

2. Durability: Floor-standing fast chargers focus on durability to cope with common public use and environmental impacts under different weather conditions.

3. Security: EV chargers need to provide advanced security, including emergency stop buttons, electronic payment security, etc.

4. High power output: In order to adapt to different types of electric vehicles, fast chargers provide high power output options to meet the needs of fast charging.

5. Communication and intelligent functions: Chargers are usually equipped with communication modules to achieve intelligent functions such as user identification, remote monitoring, and metering of electric energy usage.

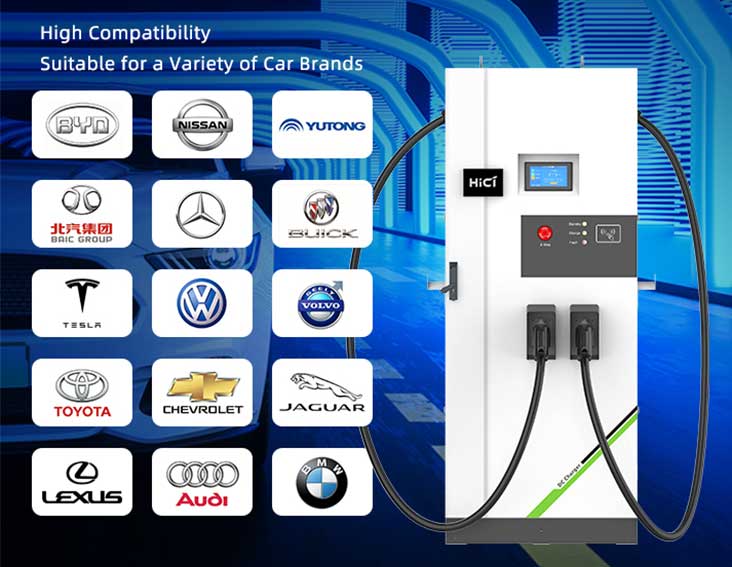

Which car models are suitable for the chargers used in charging stations?


Floor standing EV charger adapted to car

Household electric vehicles (BEV and PHEV): Provide convenient charging services for household electric vehicles, usually supporting multiple charging standards.

Commercial vehicles: Used in electric taxis, commercial electric trucks, electric public transportation, etc. to support the charging needs of commercial vehicles.

High-end electric vehicles: Floor-standing chargers often offer high-power output options and are suitable for high-end electric vehicles to speed up charging.

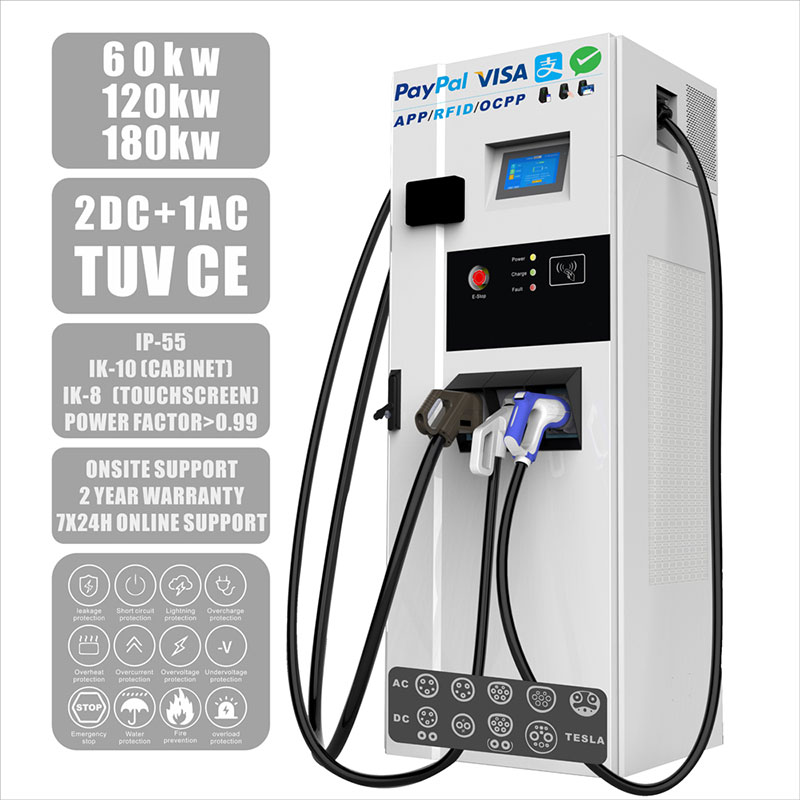

EV fast charger features


EV fast charger features

▶ 60kW/120kW/180kW multi-standards fast charger supporting free combination of CHAdeMO, GB/T 20234, CCS1,CCS2 and type 2 AC

▶PF>0.99 (APFC)

▶ Efficiency>94% at nominal output power

▶OCPP1.6 JSON

▶ Intelligent RFID card reader, ISO14443A (M1/MIFARE Card)

▶ 7” touch screen and user-friendly interface support English, French, Russian and Spanish

▶ Ethernet/4G/3G

▶ IK10, IP55

▶Customization available

▶ Easy installation and maintenance

CATEGORY SW SERIES
Model Name SWEJE60/120/180
AC Input Input Rating 400 VAC ± 15%
Input voltage 400
AC Input Connection 3P + N + PE
Max. Input Current (A) 110A / 220A / 330A
Frequency (Hz) 45 ~ 65
Power Factor >0.99
DC Output Output Voltage Range 50~500Vdc (CHAdeMO)
150~1000Vdc (CCS)
340~460Vac (type 2 AC)
Max. Output Current 125A(CHAdeMO)/200A(CCS)/63A(type 2)
Output Power Range(kW) 60kW/120kW/180kW
Voltage Accuracy (%) ± 0.5
Current Accuracy (%) ± 1
User Interface
& Control
Display 7 inch touch screen
Push Buttons Emergency Stop
User Authentication RFID ISO14443A (M1/MIFARE Card)
Display Information Charging process and status / Alarm and warning messages
Communication External Ethernet/4G/3G
Internal CANbus / RS485
Environmental Operating Temperature (°C) -30 ~ +50, power derating from 50 and above
Humidity (%) 5~95RH, non-condensing
Altitude (m) ≤2500m
IP Level IP55
Cooling Method Fan cooling
Mechanical Dimension(WxDxH mm) 750*630*1800
Weight(kg) ≤450 / ≤480 / ≤510
Cable Length(m) 5
Protection Input Protection OVP, OCP, OPP, OTP, UVP, Residual current detection, Surge protection,
Cabinet-open detection (rear door)
Output Protection SCP, OCP, OVP, LVP, OTP, Residual current detection
Regulation Certificate IEC 61851-1 , IEC 61851-23 , IEC 61851-21-2
Safety CE,UL
Charging Interface CHAdeMO 1.0, ISO15118, DIN 70121
