12V/24V Electric AC Compressor for Car

Description
Specification

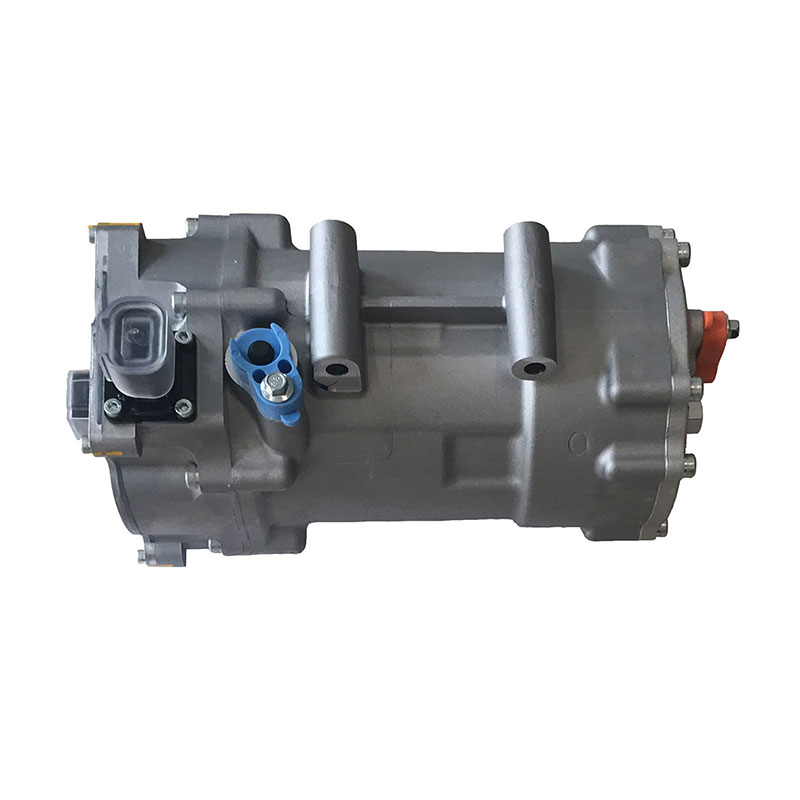

12V Electric Compressor for Car

12v/24v electric compressors are widely used in air conditioning systems of small cars, light commercial vehicles, large commercial vehicles, trucks, agricultural vehicles, and construction machinery. They are small and can be installed and used in compact spaces. It provides convenience and comfort for vehicle internal temperature control, and the electric compressor is very environmentally friendly and does not cause environmental pollution.

24V Electric AC Compressor Features

★ Flexible scroll compression structure

★ Resistance the liquid refrigerant assault

★ Smooth operation, low noise and less vibration

★ Environmentally friendly refrigerant

★ High efficiency DC frequency conversion technology

★ Modularization design for EV/HEV/PHEV/FCEV

Model	SWEVS16B
Refrigerant	R134a
Displacement (cc/rev)	16
Power type	DC(150V~420V) or DC (400v~750v)
Speed range(rpm)	1500~6000
Communication protocol	CAN 2.0b or PWM
Operation environmental temperature (℃)	-40 ℃~80℃
Oil type	POE HAF68(100mm)
Max.cooling capacity (w)	2.8KW
COP (W/W)	2.2
Test condition	Ps/Pd=o.2/1.4Mpa(G),SH/SC=10/5℃
Compressor length L(mm)	223
Suction diameter (mm)	18.3
Discharge diameter (mm)	15.5
Net weight (kg)	5.8KG
