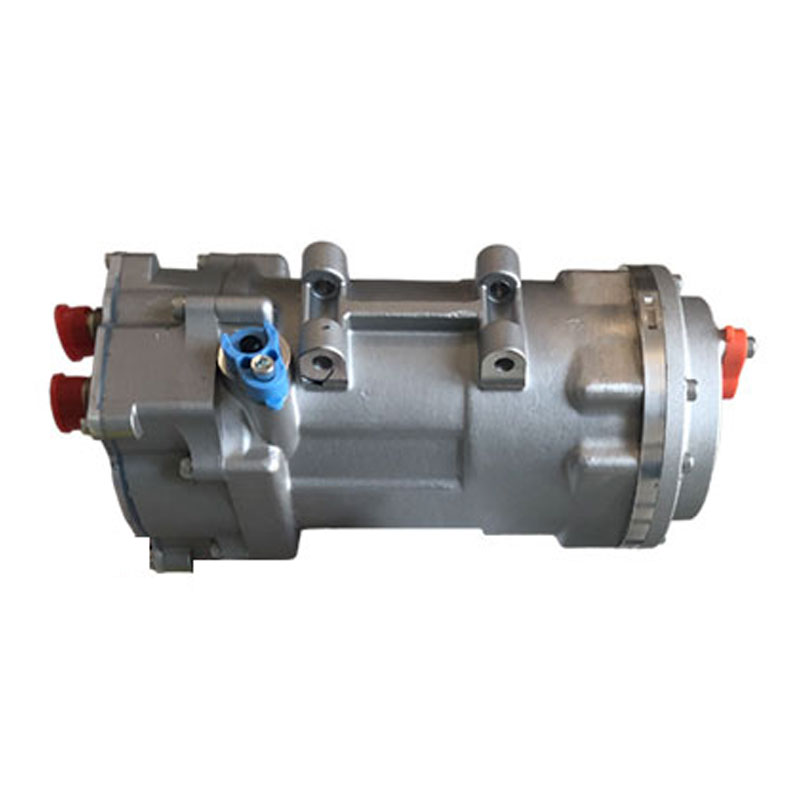

High Voltage Electric AC Compressor for Truck

Description
Specification

High Voltage Electric AC Compressor

High voltage electric compressors can improve the efficiency of high-voltage electric vehicle air conditioners and other uses in refrigeration systems. High-voltage electric compressors can reduce current density, reduce heat generation, and improve the safety of electrical systems. Using high-voltage electric air conditioning compressors can reduce the refrigerant charge, thereby reducing the impact on the environment.

Electric AC Compressor for Truck

★ Flexible scroll compression structure

★ Resistance the liquid refrigerant assault

★ Smooth operation, low noise and less vibration

★ Environmentally friendly refrigerant

★ High efficiency DC frequency conversion technology

★ Modularization design for EV/HEV/PHEV/FCEV

Model	SWEVS42C
Refrigerant	R407C
Displacement(cc/rev)	42
Power type	DC(150V~420V) or DC (400v~750v)
Speed range(rpm)	2000~6000
Communication protocol	CAN 2.0b or PWM
Operation environmental temperature (℃)	-40 ℃~80℃
Oil type	POE HAF68(220mm)
Max.cooling capacity (w)	14.2KW
COP (W/W)	3
Test condition	Ps/Pd=o.2/1.4Mpa(G),SH/SC=11.1/8.3℃
Compressor length L(mm)	303
Suction diameter D1(mm)	21.3
Discharge diameter D2(mm)	15.5
Net weight (kg)	8.6KG
