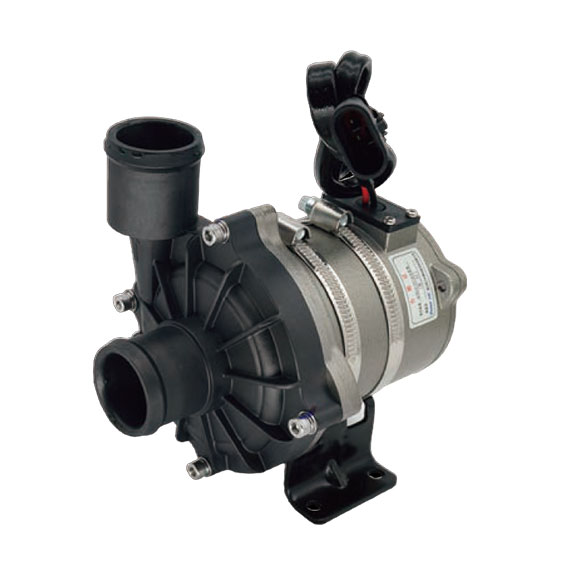

24V DC Electric Water Pump

Description
Specification

As the liquid delivery system of electric vehicles, 24V DC electric water pump can provide preheating, cooling, parking heater circulation, engine preheating, steam heater air conditioning circulation, car charging pile water cooling, and battery thermal management system cooling and heating. It plays an important role in improving system performance, energy efficiency, and controllability.

24V DC Elelctric Water Pump Features

▶ Positive and negative pole wrong connection protection function.

▶ Soft start protection, low start-up current.

▶ Overcurrent and undercurrent protection.

▶ Blocking protection.

▶ Brushless DC motor, efficiency up to 90%.

▶ Closed impeller structure, hydraulic efficiency of more than 60%.

▶ Low noise.

SWE200
	SWE200-1	SWE200-2	SWE200-D	SWE200-E	SWE200-X
Rated voltage	DC 24V
Rated current	9.2A	12A	10A	9.6A	12.5A
Operating Voltage	DC 18~32V
Power range	<240W	<450W	130-250W		<320W
Working environment	-40°C~85°C		-40°C~105°C		-40°C~85°C
Performance parameters	Q=6000L/h, H=7.5m, P=220W±5% (250W Max)	Q=2800L/h,H=16m,P=290±10W	Q=2800L/h,H=20m	Q=5000L/h, H=9m	Q=2800L/h,H=22m
Working medium	50% glycol aqueous solution(preferably organic type, particle ≯ 0.35, content ≯ 0.1g/L)
Protection level	IP68
Working noise	≤ 50dB	≤ 52dB	≤ 60dB
Working life	≥ 35000h	≥ 20000h
Weight	1.8kg(Including bracke)		2.5kg(Including bracke)	2.2kg(Without support)	2.45kg(Including bracke)
Protection function	Blocking, reverse, connection, undervoltage, overvoltage, overcurrent, idling, overtemperature
