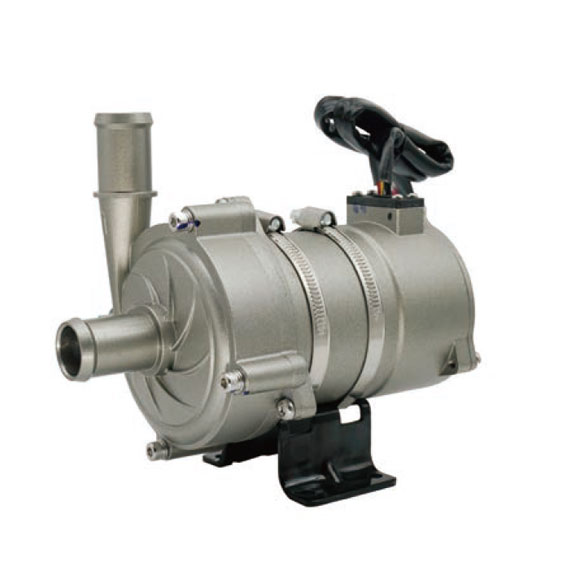

PHEV Electric Water Pump

Description
Specification

PHEV electric water pumps play a key role in hybrid electric vehicles, providing efficient, intelligently controlled, and reliable liquid delivery solutions for cooling, battery temperature management, and other applications to improve PHEV performance and sustainability. Electronic water pumps help improve battery life and optimizing energy usage is crucial.

PHEV Electric Water Pump Features

▶ Power reverse connection protection function.

▶ Built-in anhydrous protection, with dry turn protection function.

▶ Blocking protection function.

▶ Overload protection function.

▶ Fault processing: when there is a fault, the fault feedback line is low level, when there is no fault, the fault feedback line is high level (fault level according to customer requirements).

SWE300
	SWE300-A	SWE300-B
Rated voltage	DC 24V
Rated current	13.3A	16.7A
Operating Voltage	DC 18~32V
Power range	<320W	<450W
Working environment	-40°C ~ 85°C
Performance parameters	Q=3000L/h, H=17.5m	Q=3000L/h, H=20m
Working medium	50% glycol aqueous solution(preferably organic type, particle ≯ 0.35, content ≯ 0.1g/L)
Protection level	IP68	IP67
Working noise	≤ 60dB
Working life	≥ 20000h
Weight	2.45kg(Including bracke)	2.45kg(Without support)
Protection function	Blocking, reverse, connection, undervoltage, overvoltage, overcurrent, idling, overtemperature
